Machine designed for sanding metal with a useful width of 330 mm and fixed bed.
Intended for sanding, deburring, rounding edges, removing oxides and slag from parts cut by laser, plasma cutting and stamping.
Description

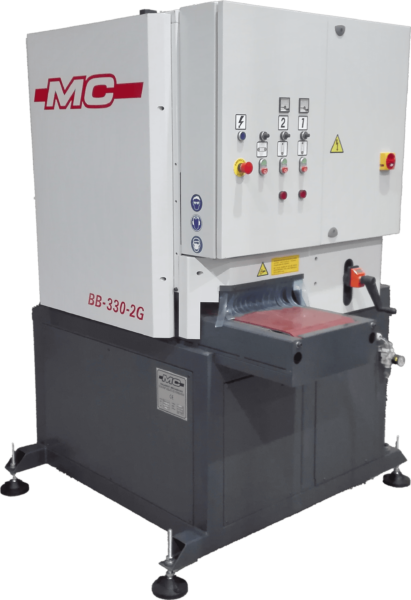

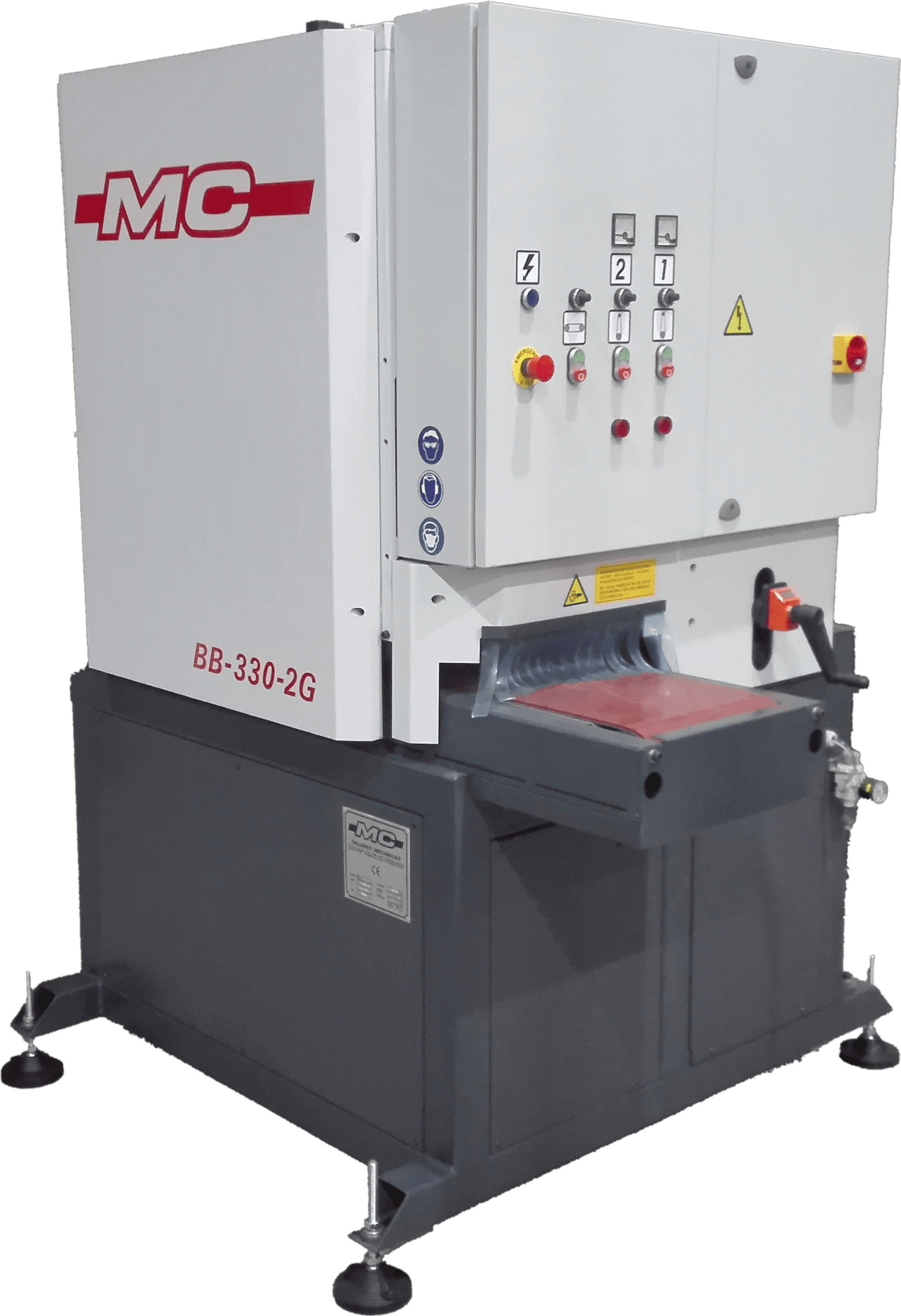

Machine made in a very robust tubular structure, inside it has two sanding band groups, which provide an excellent surface finish.
The sanding groups remove burrs from parts coming from laser, plasma and die-cutting machines.
The machine is operated through a control panel that contains different pictograms, making it very easy to operate. As it has a fixed bed, it is prepared for online work processes.
DIMENSIONS:
Length: 1.780mm
Width: 1.400mm
Height: 1.900mm
MACHINE CONTROL: Manual keypads
TRANSPORT SPEED: 1 a 14 m/min
BROADBAND SPEED:: 15m/s
NUMBER OF BANDS: 2 X 330
WORKING WIDTH: 330mm
WORKING HEIGHT: 80mm
VOLTAGE: 400V three phase + neutral + ground
POWER: 16Kw
WEIGHT: 1525 Kg.
ASPIRATION: 4 X Ø100mm
